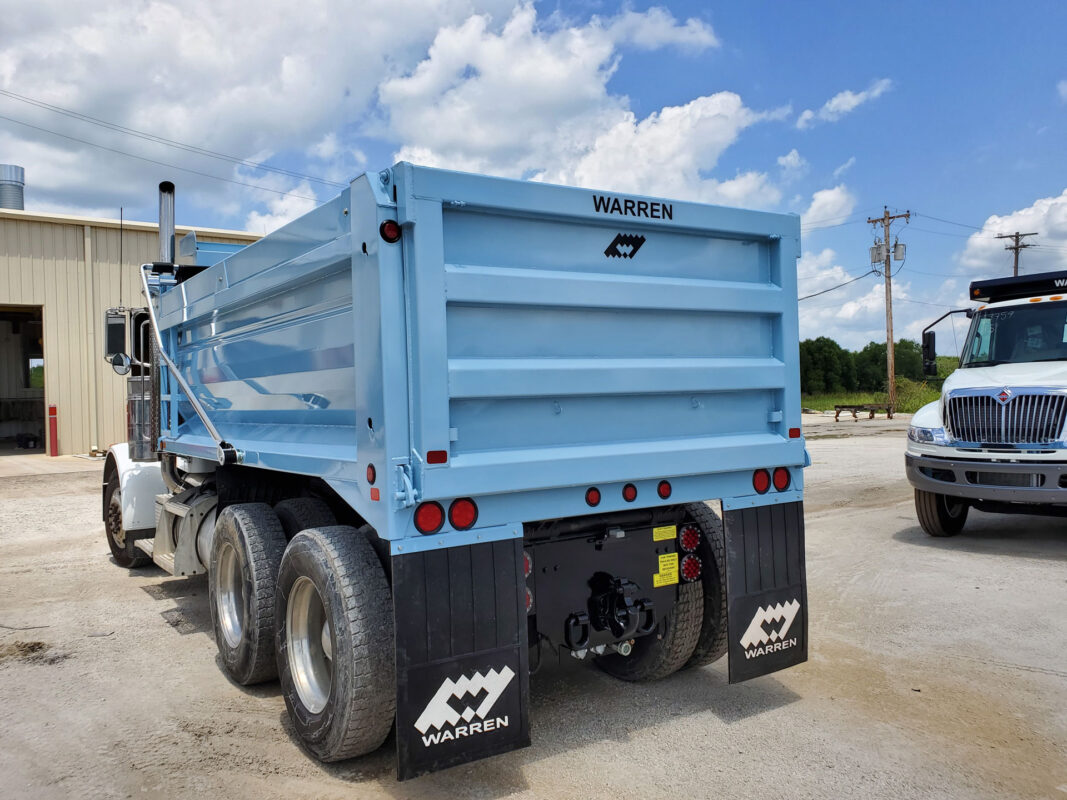

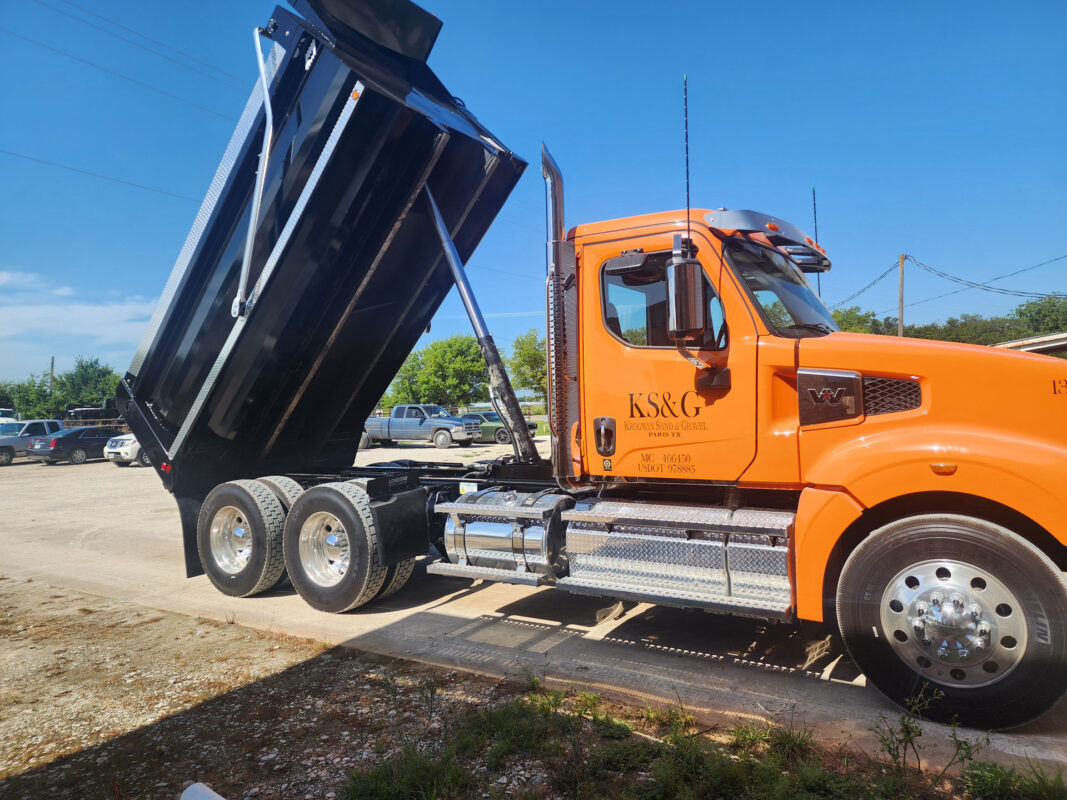

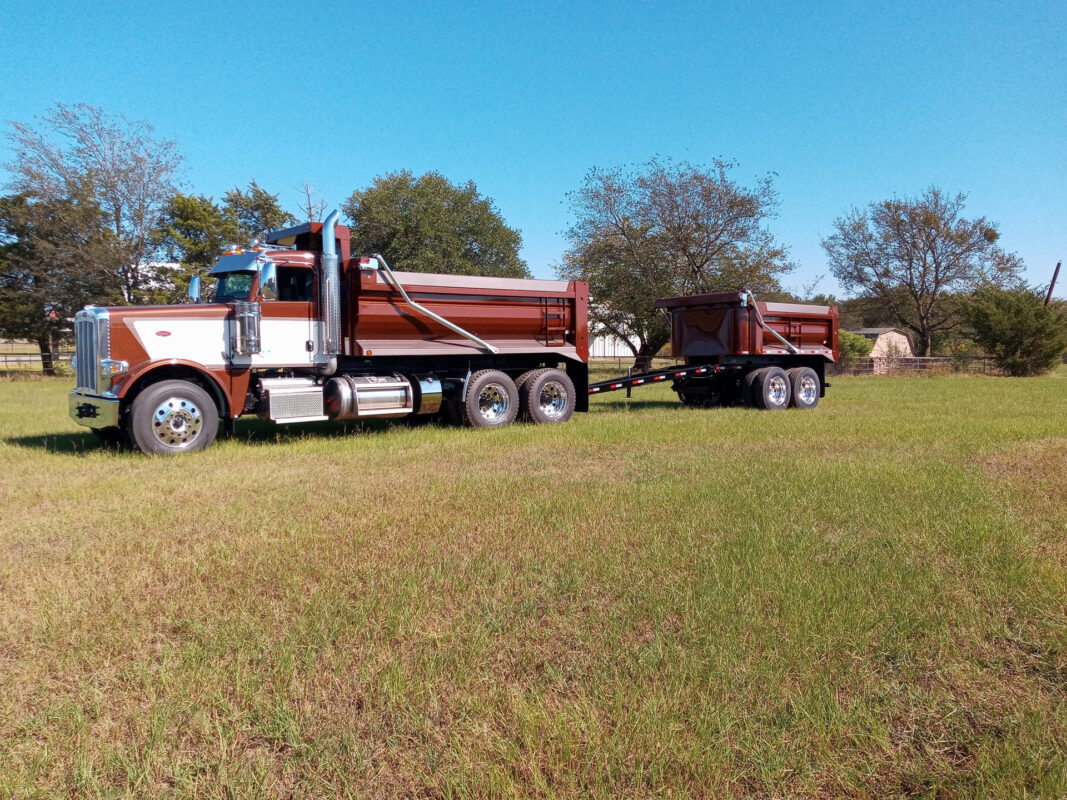

WS-700 Series Bodies



Warren’s WS-700 series is a light weight steel dump body designed for hauling aggregate, sand, or asphalt. The WS-700 utilizes ASTM A1011 A-45 high tensile steel in a unibody design to provide a clean, tough, lightweight hauling body. The crossmember-less design eliminates material buildup and makes for easy cleanup and maintenance.



Features & Benefits of Warren WS-700 Series Bodies

  • 10 gauge high tensile steel sides, front, & gate w/ 3/16” floor
  • Body, & NTEA rated hoist manufactured by Warren
  • Continuous welding throughout body for additional strength
  • Cross-memberless – no dirt buildup in cross-members
  • Full depth rear corner post with full depth rear crossmember
  • 4 x 4 x 1/8” boxed tubing top rails
  • One-piece poly hydraulic tank for corrosion resistance & reduced weight

WS-700 Series Specifications

Construction:
Continuously welded unibody design
Understructure:
8″ I-Beam @ 13.0#/ft. long rails
No Crossmembers
Floor:
3/16″ AR-450
Sides:
42″ Height
10 ga high tensile steel
Boxed top rail 4” x 4” x 1/8”
Dirt shedding rub rail
Tailgate:
50″ height
10 ga high tensile steel
18” sloped gate
Boxed perimeter with horizontal braces
Front Bulkhead:
10 ga high tensile steel
Die formed corrugation
Dimensions:
Lengths –12′, 13′, 14′, 15′, 16′, 17′, 18′

Body Model:                             Hoist Model:

WS-700-12
WS-700-13
WS-700-14
WS-700-15
WS-700-16
WS-700-17
WS-700-18

VTLW 6397
VTLW 63110
VTLW 63110
VTLW 63126
VTLW 74135
VTLW 63142
VTLW 74167

Optional Attachments

Tarp System
High Lift Tailgate
1/4; 1/2; or Full Cab Shield
Vertical end
12” sloped end
Spreader Apron
Custom Paint
LED Lights
AR 400 floor
