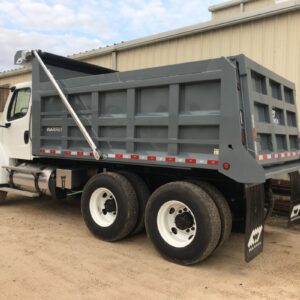

F Series Standard Specifications
| Construction: | ASTM A1011 A-45 High Tensile Steel |
| Understructure: | 4” – 5.4#/ft. channel crossmembers on 12″ centers 5″ – 6.7#/ft channel longitudinals (12-14′ F Series) 5″ – 9.0#/ft channel longitudinals (15′-16′ F Series) |
| Floor: | 3/16″ A1011-45 Steel |
| Sides: | 10 gauge steel 6″ wide boxed vertical side braces 10″ wrap around front corner posts 8″ high front & rear board pockets |
| Tailgate: | 10 gauge steel – 9 panel braced 6″ higher than sides Air operated control lock Double lower sockets w/ overhooks |
| Front Bulkhead: | 10 gauge steel w/ 2 die-formed horizontal braces Dog house w/ access door |

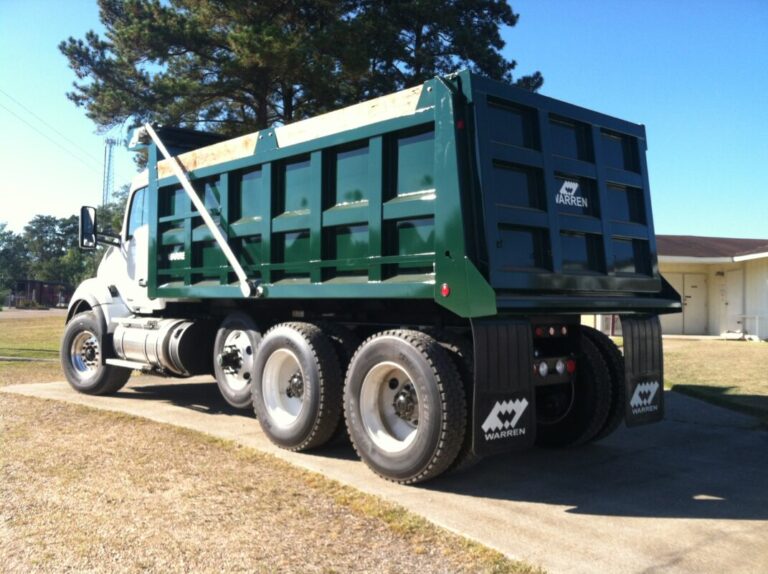

| Dimensions: | Overall Width: 96″ Inside Width: 87″ Lengths –12′, 13′, 14′, 15′, 16′ Stock Sizes: 13′-16′ Length 48″ Front/Rear and 42″ Sides MSF-13-4248; MSF-14-4248; MSF-15-4248; MSF-16-4248 MSF-16-4856 (17/19 YD HD Package) |

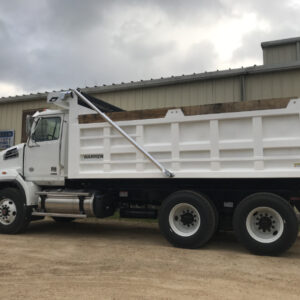

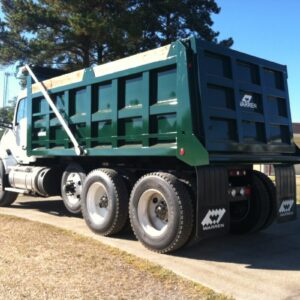

Features & Benefits of Warren F Series Bodies
- ASTM A1011 A-45 High Tensile Steel
- Body & NTEA rated hoist manufactured by Warren
- Continuous welding throughout body for additional strength
- Available in 12′-16′ lengths
- Boxed tubular top rail
- Full depth rear corner post

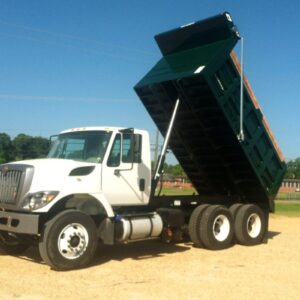

Frame Type Dump Body Hoists:
| Type: | Telescopic Frametype |
| Model: | Warren VTW |
| Rear Hinge: | 1 15/16″ |
| Standard Pivot: | 12″ |
| Mounting Height: | 12-1/4″ |
| Tank: | Steel Pyramid Doghouse or Slim Aluminum Side Mount |
| Hydraulic Pump | 85CC Gear Pump 22 GPM Air Shift Dump Pump 35 GPM Air Shift Dump Pump |
| Console and Controls | Aluminum Tower w/ dump body conrols |
Hoist Models:
| Body Length: | Hoist Model: |
|---|---|
| 12′ | VTW-63101 |
| 13′ – 14′ | VTW-63110 |
| 15′-16′ | VTW-63124 |
| 16′ | VTW-74135 |
Frametype Dump Body Options:
- Upgrade to 1/4″ A1011 Steel Floor
- Upgrade to 3/16″ or 1/4″ AR-450 Steel Floor
- Upgrade to 3/16″ or 1/4″ AR-500 Steel Floor
- Upgrade Body Shell to 7 GA or 1/4″ A1011
- Upgrade Body to all 1/8″; 3/16″, or 1/4″ AR-450

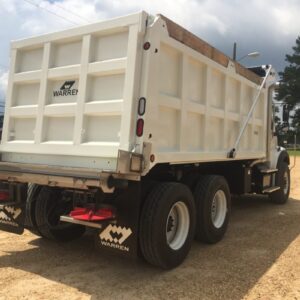

- Numerous Dump Body Tailgate Designs
- Numerous Dump Body Cab Shield Designs

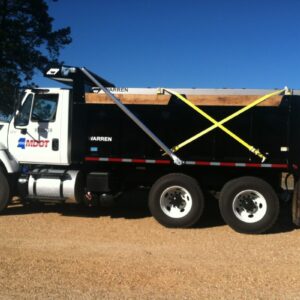

- Dump Body Tarp Systems
- Dump Body Spreader Apron Options
- Coal Doors
- Custom Paint
- LED Lights and/or Strobe Packages
