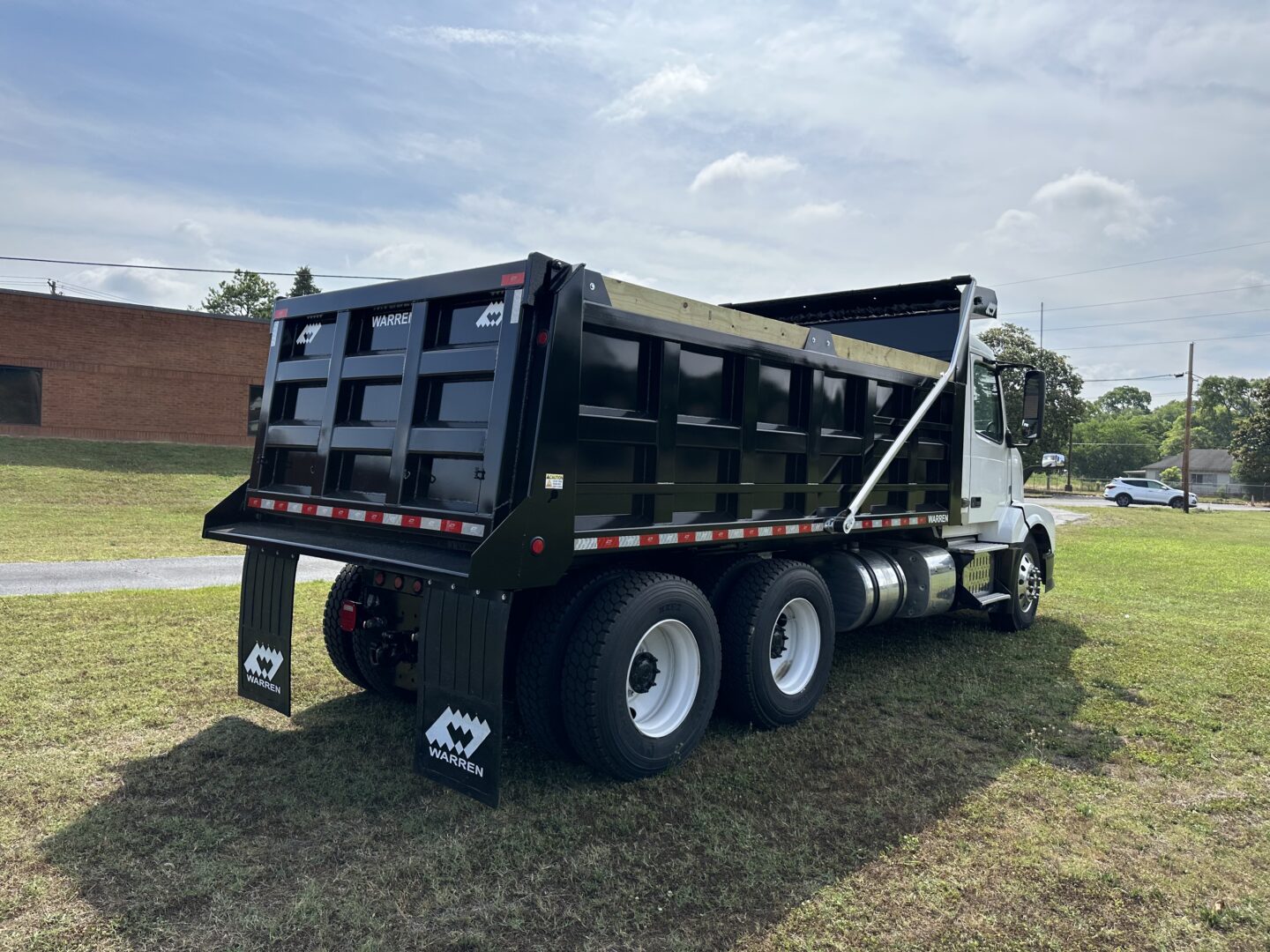

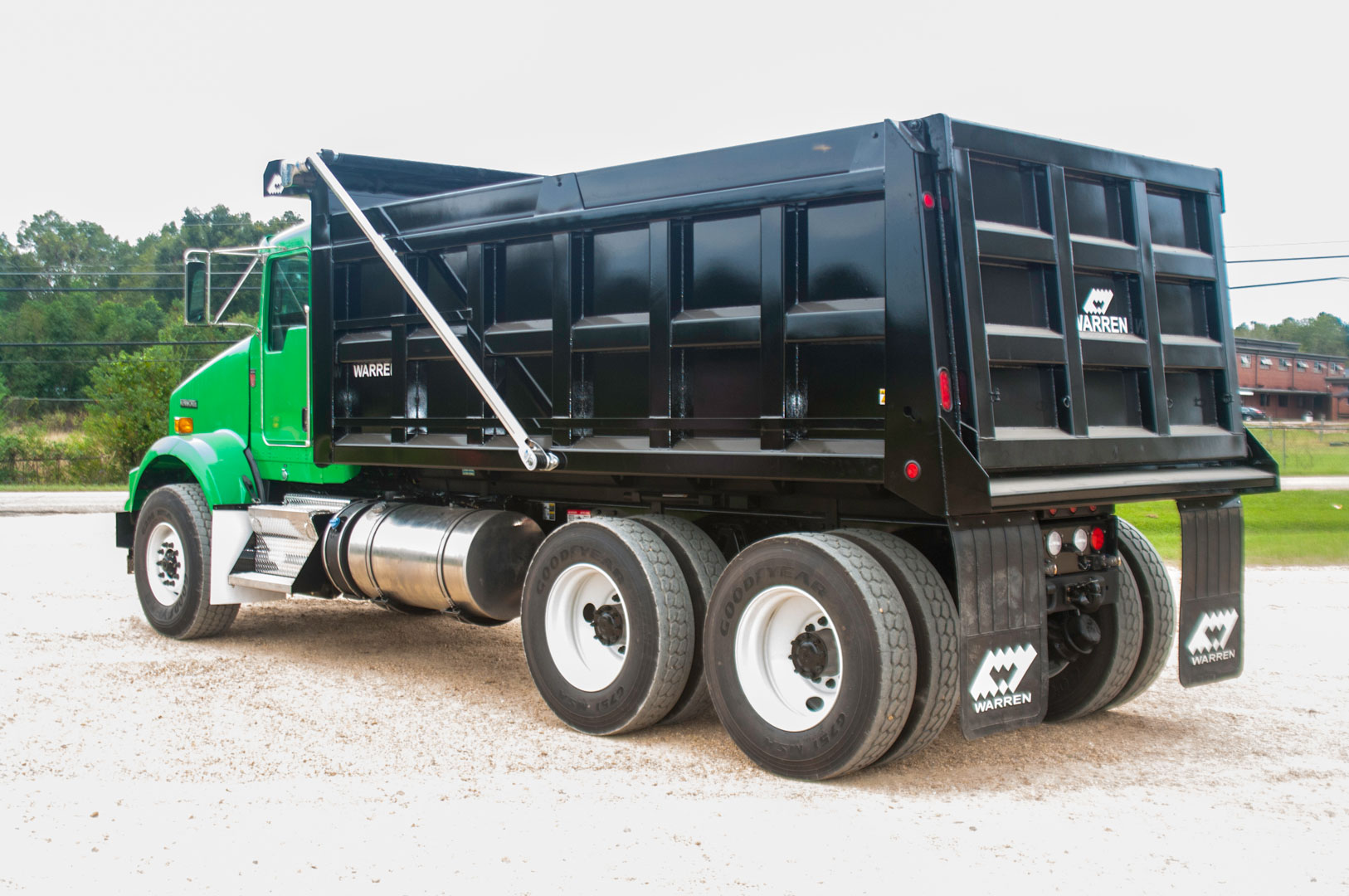

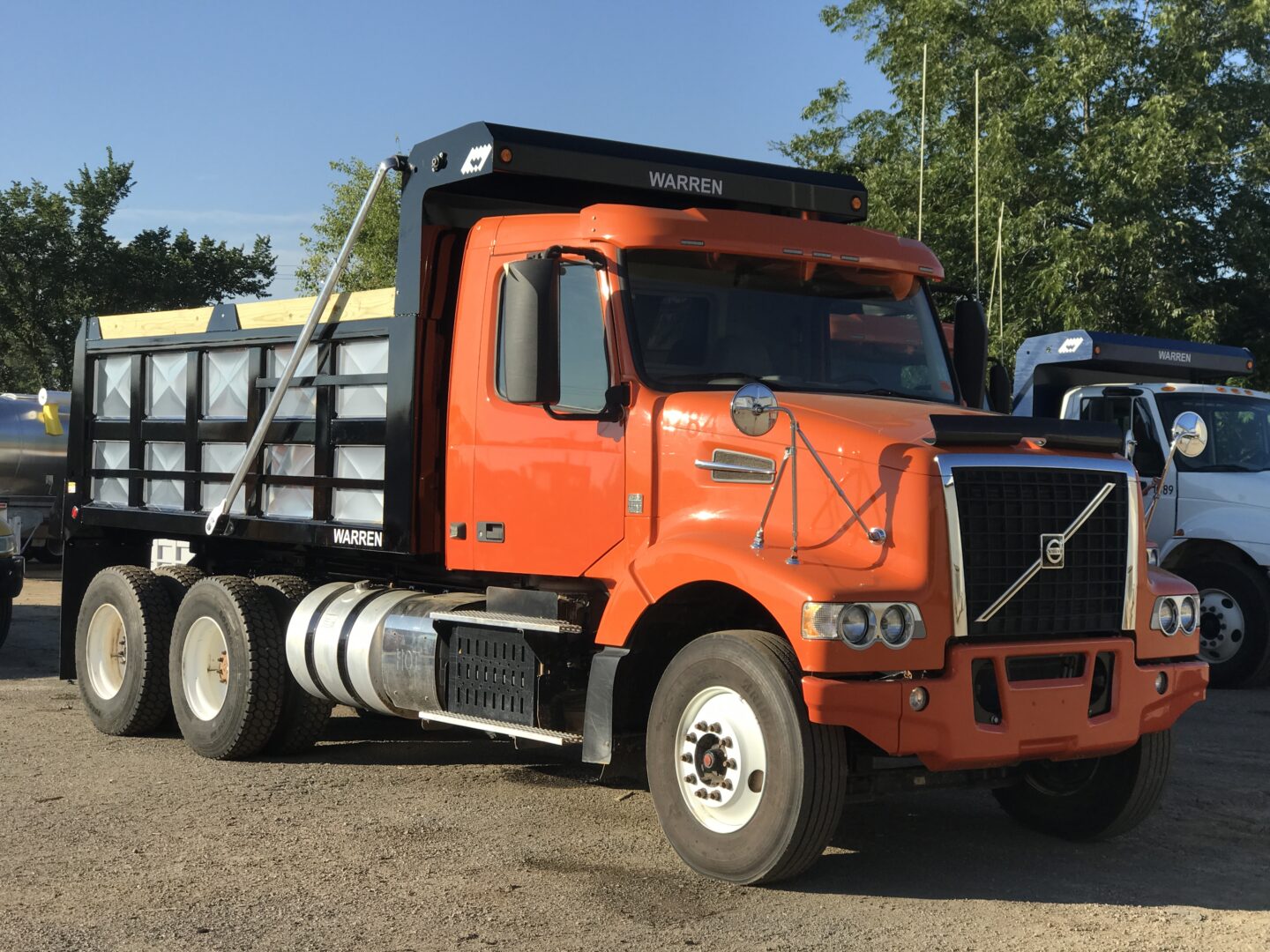

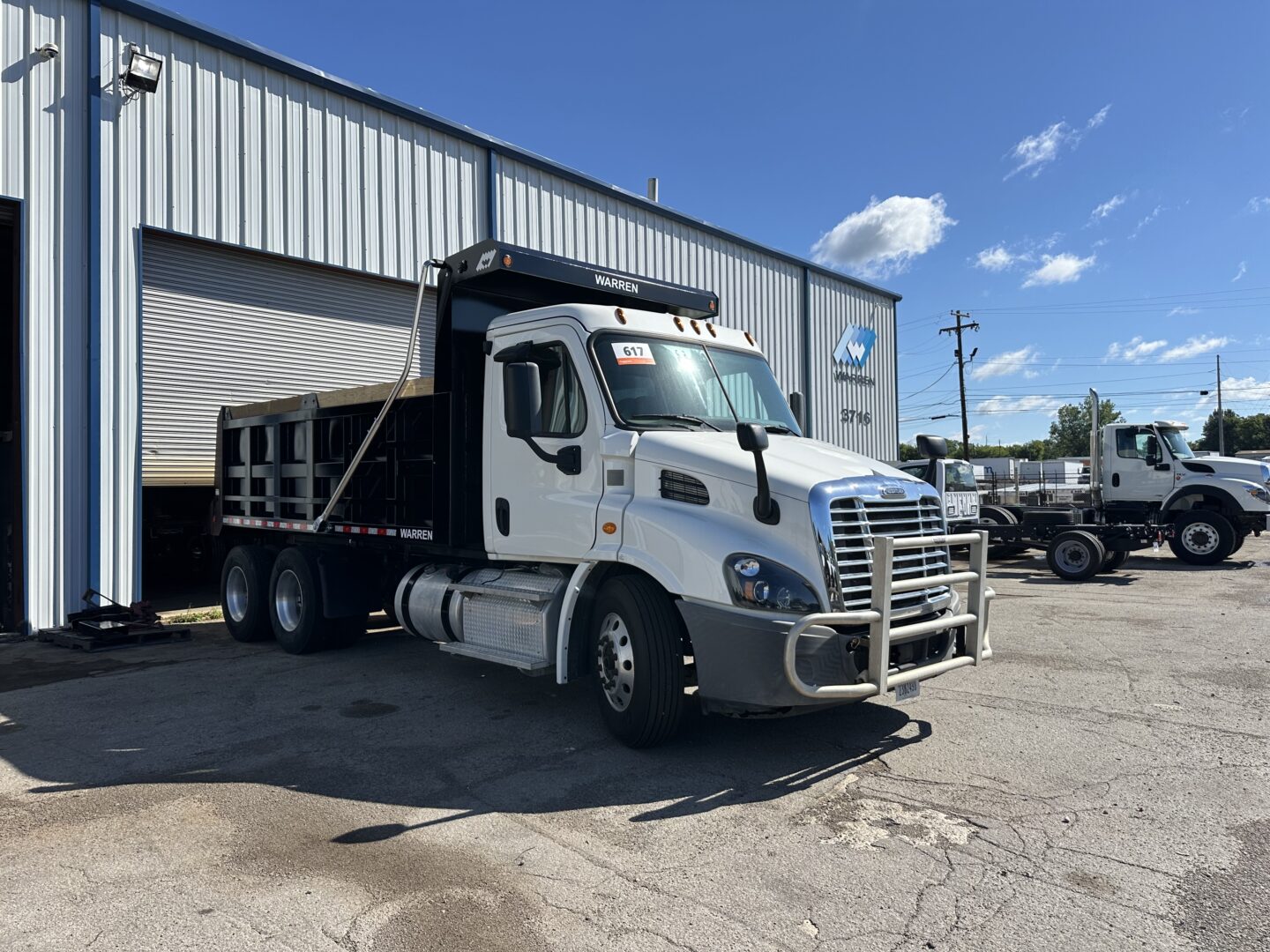

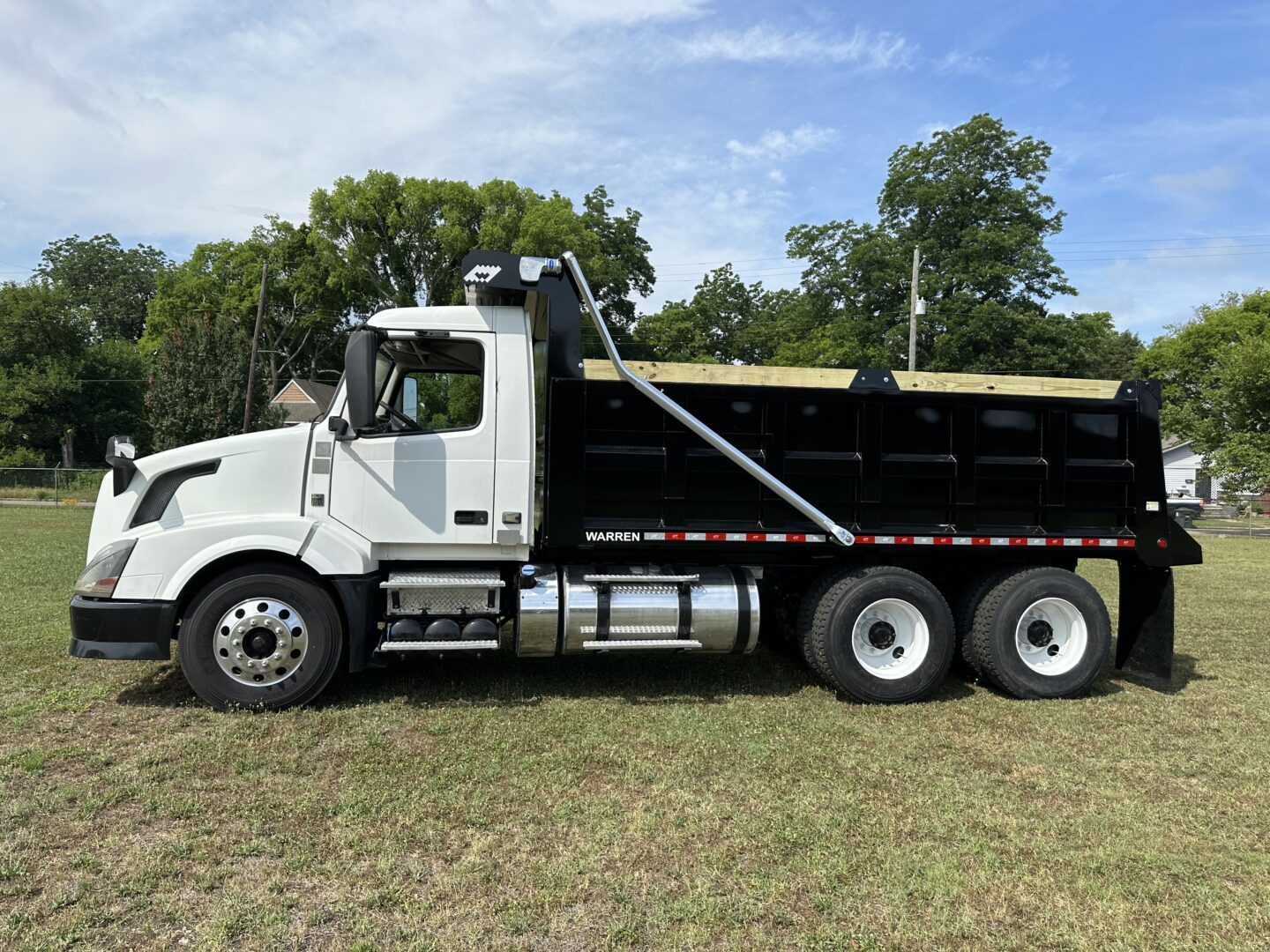

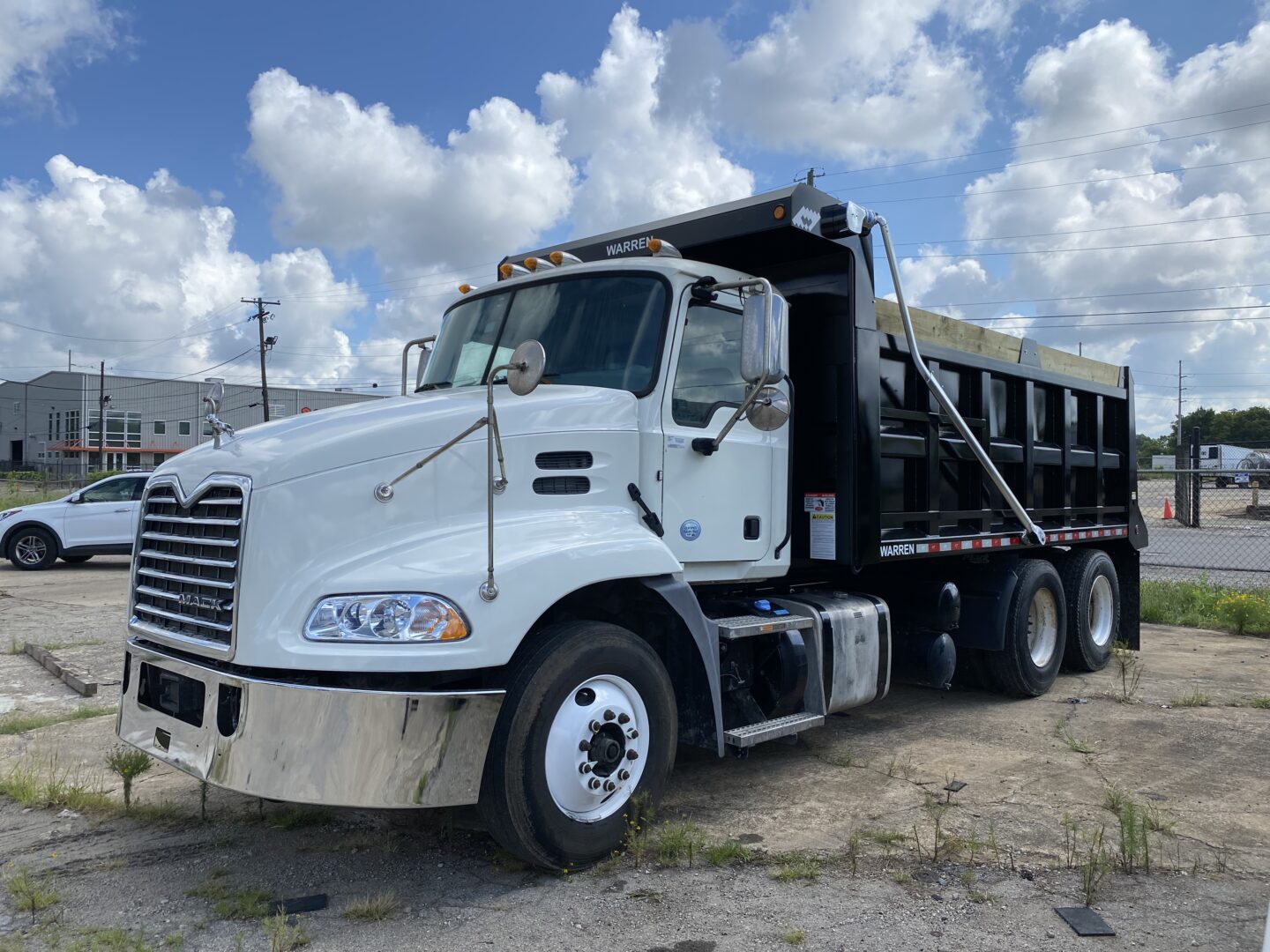

MSFL Series Bodies

The Warren MSFL Series dump bodies are purpose-built for mounting on heavy-duty tandem and tri-axle truck chassis, making them ideal for demanding hauling tasks. Featuring a durable “Stacked Type” under-structure, these dump bodies are designed for extended longevity, offering reliable performance over the long term. Their engineering is tailored to meet the rigorous requirements of contractors and governmental agencies, providing dependable solutions for hauling materials like sand, gravel, asphalt mix, and other bulk loads.

Additionally, the MSF-style bodies are well-suited for tractor/daycab dump body conversions due to their subframe-style hoist. This feature enhances their versatility, allowing operators to easily convert and repurpose vehicles for different applications. Whether it’s for expanding fleet functionality or adapting to new operational needs, the Warren MSFL Series offers a practical and durable solution for a wide range of heavy-duty transport tasks.

Are you interested about the product?

If you have any inquiries, want to learn more about the product, or are interested in purchasing one, please don't hesitate to call us. Click the button below to call us right away.
call us!
Features & Benefits
Specification
Hoist
Options
Literatures

Features & Benefits of Warren MSFL Series Bodies

  • ASTM A1011 A-45 High Tensile Steel
  • Body & NTEA rated hoist manufactured by Warren
  • Continuous welding throughout body for additional strength
  • Available in 12’-20’ lengths
  • 10″ wrap around front corner post
  • Full depth rear corner post
  • 6″ wide vertical and horizontal side braces



MSFL Series Standard Specifications

Construction:ASTM A1011 A-45 High Tensile Steel
Understructure:4″ – 5.4#/ft channel crossmembers on 12″ centers
7″ – 12.5#/ft channel longitudinals
Floor:3/16″ Steel w radius edges
Sides:10 ga. steel w/ 4 x 4 x 1/8″ boxed tubing top rail
6″ wide vertical and horizontal supports
Horizontal side braces and 1/4″ x 2″ tarp rail
Full depth rear corner posts and skirt
10″ wrap around front corner posts
Dirt shedding rub rails
Tailgate:10 ga. steel
9-panel with 6″ slope
6″ higher than sides
Air operated control lock
Double lower sockets w/ overhooks
Spreader Apron:Standard 8″ weld-on
Front Bulkhead:10 ga. steel w/ horizontal braces
Dog house w/ access door
Dimensions:Overall Width: 96″
Inside Width: 87″
Lengths –14′, 15′, 16′, 17′, 18′, 19′, 20′



Hoist:

Type:Telescopic sub-framless hoist
Mounting Height:11″
Models:VTLW-12 with 63101 Cylinder
VTLW-13 with 63110 Cylinder
VTLW-14 with 63110 Cylinder
VTLW-15 with 63124 Cylinder
VTLW-16 with 63124 or 74135 Cylinder
VTLW-17 with 74135 Cylinder
VTLW-18 with 74170 Cylinder
VTLW-19 with 74170 Cylinder
VTLW-20 with 74170 or 85190 Cylinder



Options:

  • 7GA, 3/16″, or 1/4″ Construction
  • 3/16″ or 1/4″ AR-450 Construction
  • 8″ or 10″ HD Push Aprons
  • Custom Cab Shields
  • Pintle Plates and Hitches
  • Electric Tarp Systems
  • Custom Paint
  • Customer LED Lights
