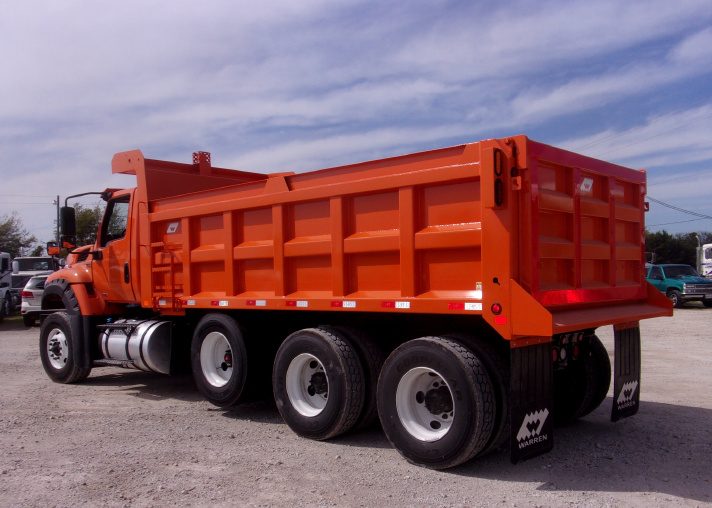

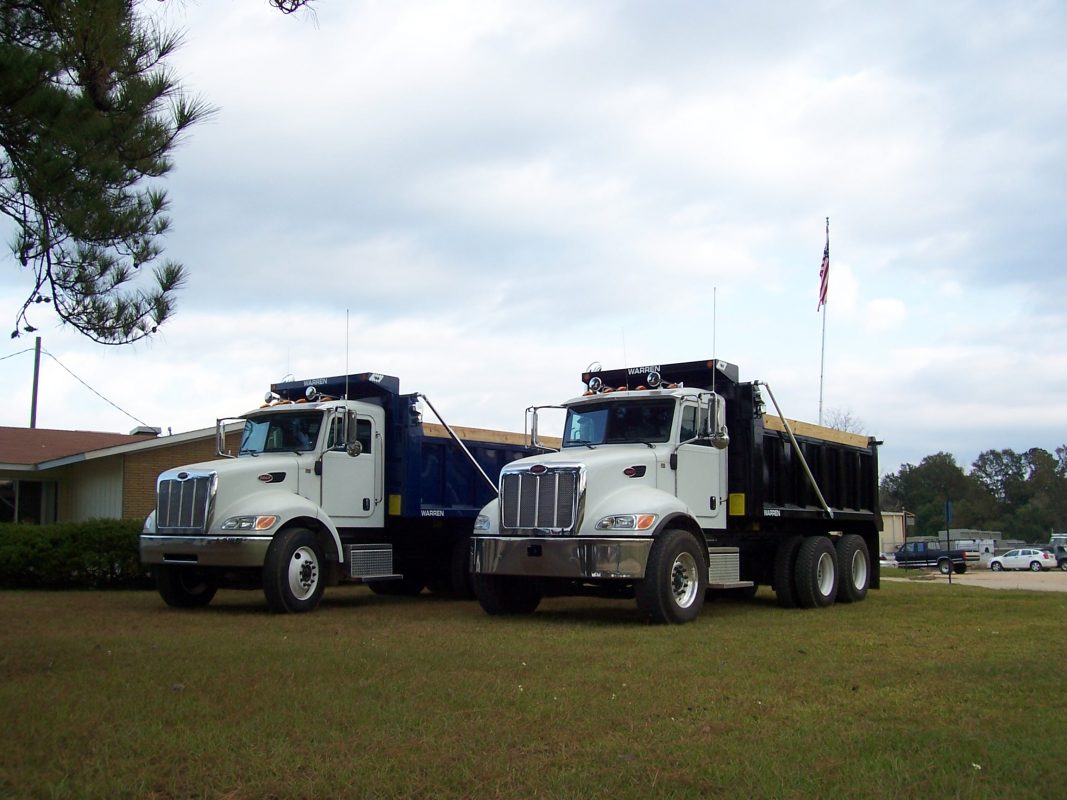

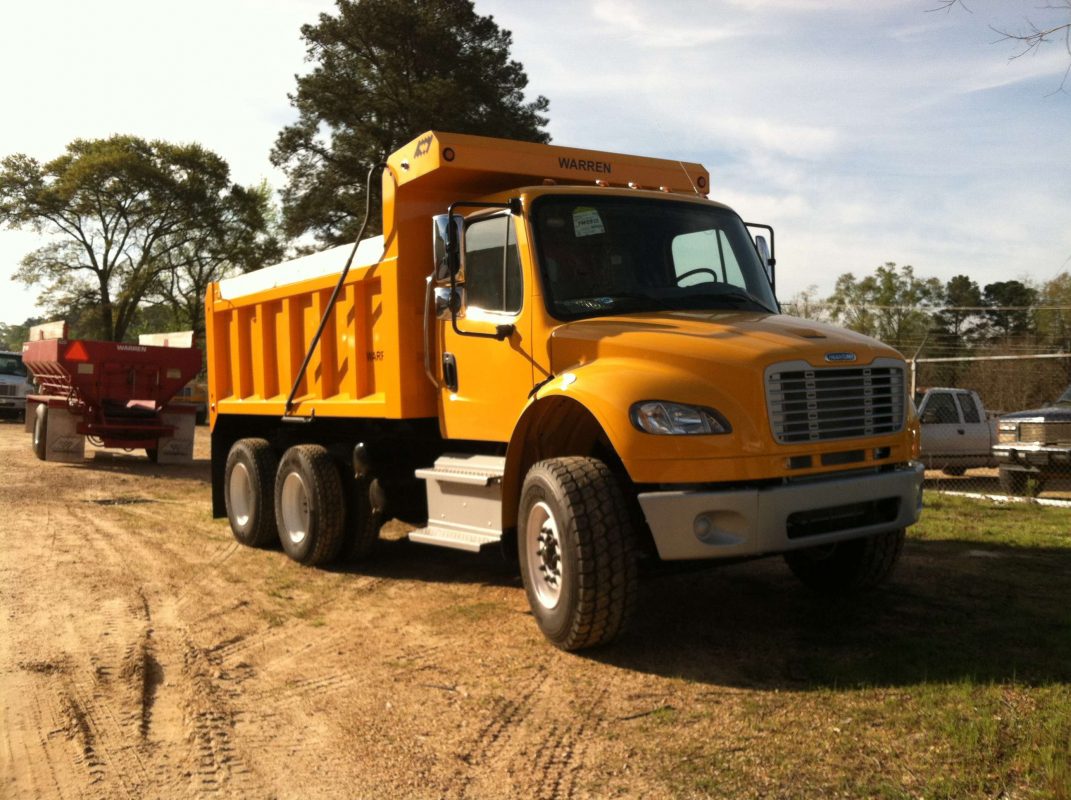

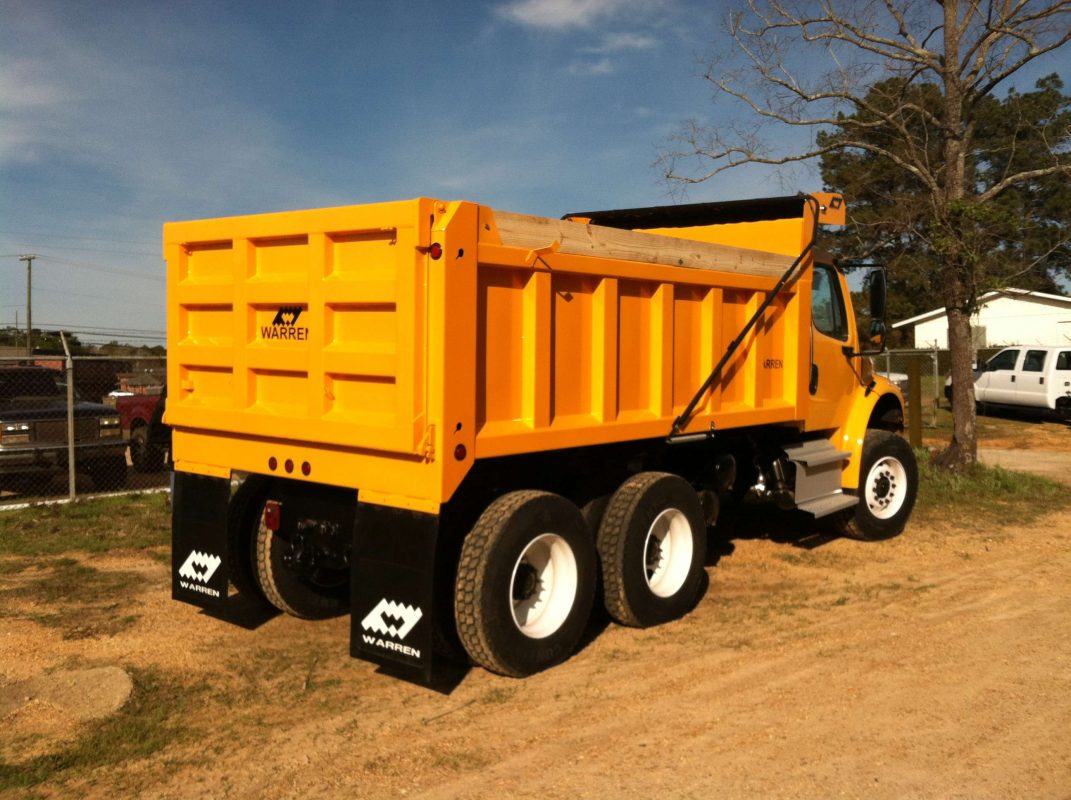

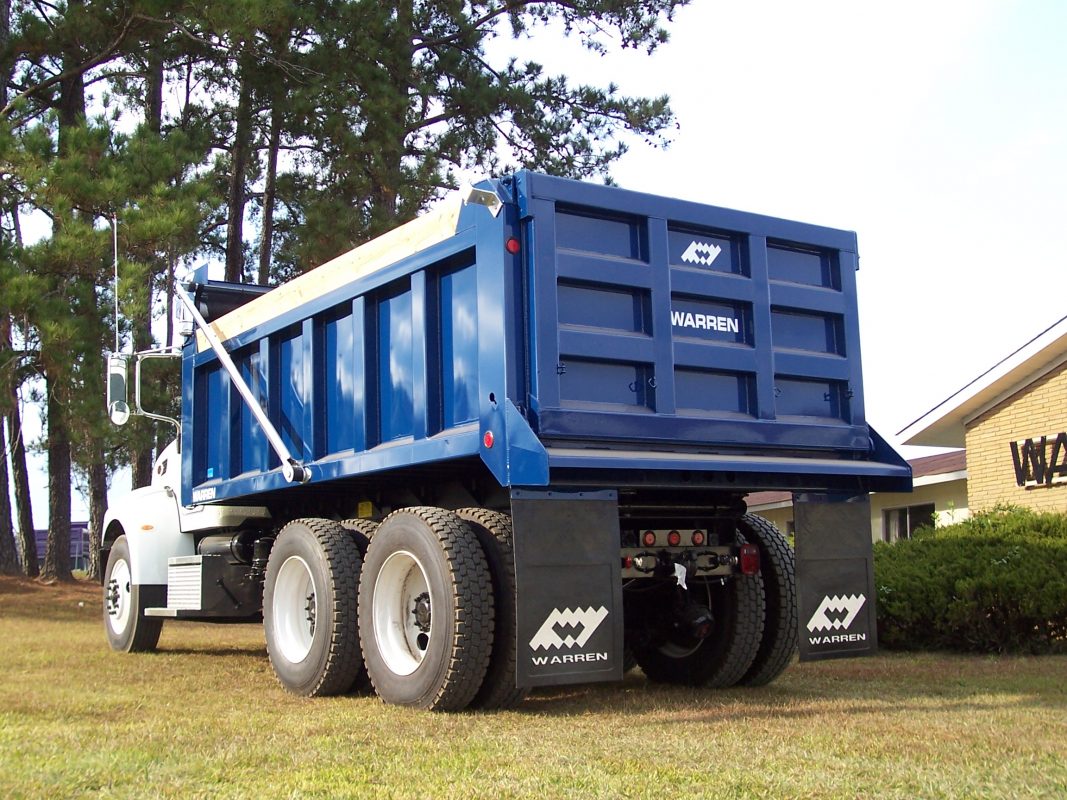

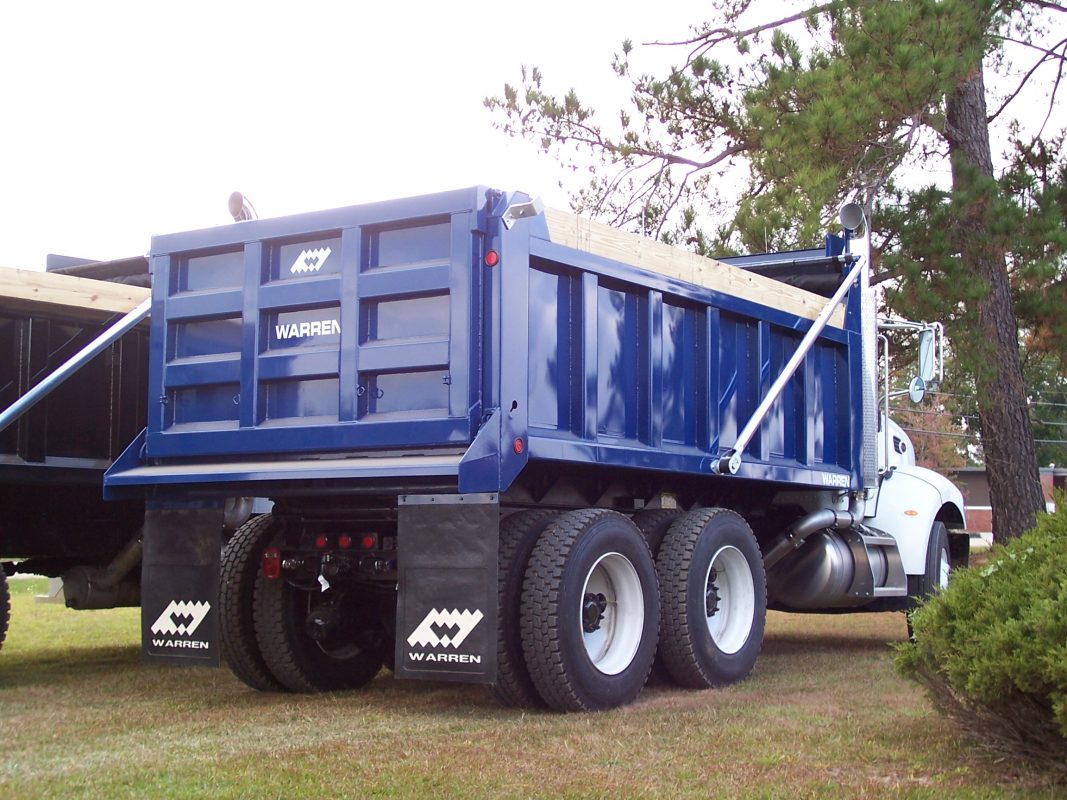

Features & Benefits of Warren FL Series Bodies
ASTM A1011 A-45 High Tensile Steel
Body & NTEA rated hoist manufactured by Warren
Continuous welding throughout body for additional strength
Available in 12′-24′ lengths
Boxed tubular top rail
Full depth rear corner post
FL Series Specifications
| Construction: | ASTM A1011 A-45 High Tensile Steel |
| Understructure: | 4” – 5.4#/ft. channel crossmembers on 12″ centers 7″ – 9.8#/ft channel longitudinals (12-14′ FL Series) 7″ – 12.25#/ft channel longitudinals (15′-24′ FL Series) |
| Floor: | 3/16″ Steel |
| Sides: | 10 ga. steel 6″ wide boxed vertical side braces 10″ wrap around front corner posts 8″ high front & rear board pockets |
| Tailgate: | 10 ga. steel – 9 panel braced 6″ higher than sides Air operated control lock Double lower sockets w/ overhooks |
| Front Bulkhead: | 10 ga. steel w/ 2 die-formed horizontal braces Dog house w/ access door |
| Dimensions: | Overall Width: 96″ Inside Width: 87″ Lengths –12′, 13′, 14′, 15′, 16′, 17′, 18′, 19′, 20′, 21′, 22′, 23′, 24′ |

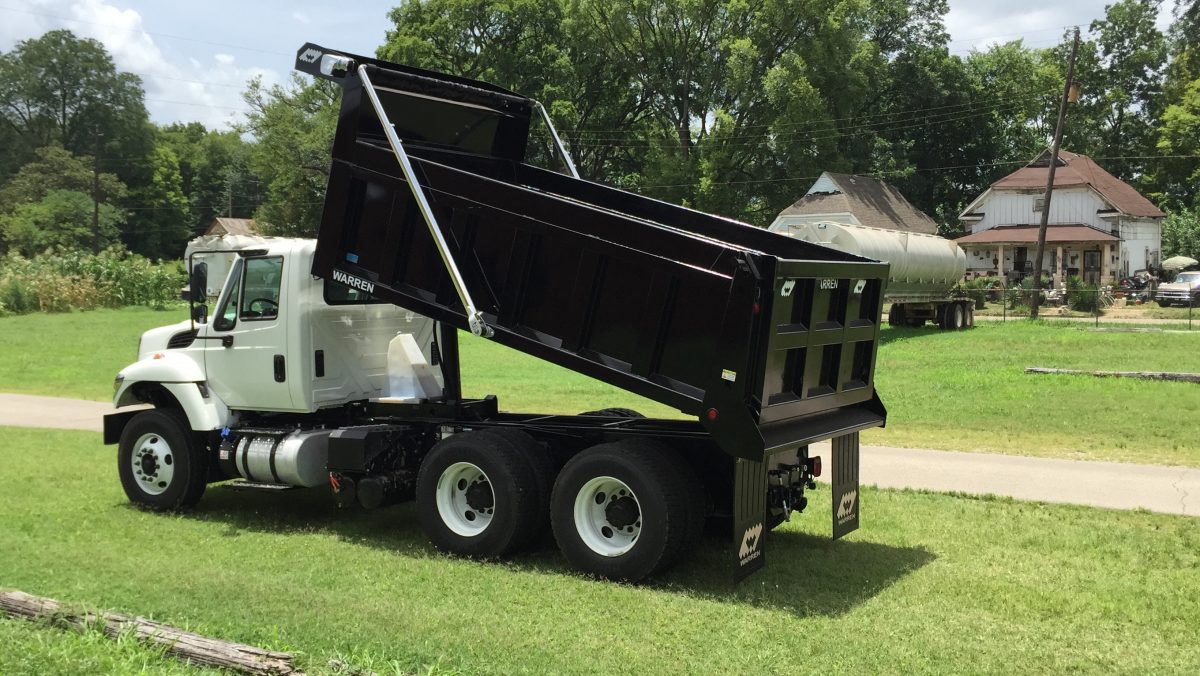

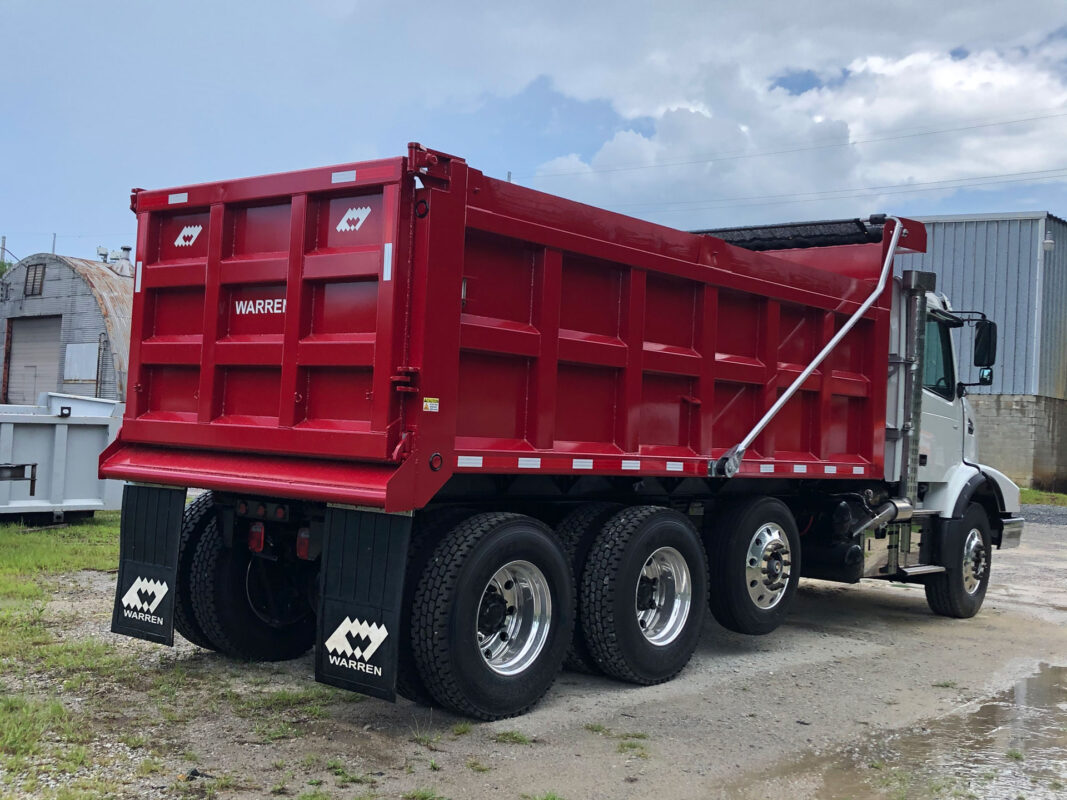

Frameless Dump Body Hoists:
| Type: | Telescopic Frameless |
| Model: | Warren VTLW |
| Frameless Rear Hinge: | 1 15/16″ |
| Standard Pivot: | 12″ |
| Mounting Height: | 11-1/2″ |
| Tank: | Steel Pyramid Doghouse Slim Aluminum Side Mount |
Hoist Models:
| Body Length: | Hoist Model: |
|---|---|
| 12′ | VTLW-63101 |
| 13′ – 14′ | VTLW-63110 |
| 15′-16′ | VTLW-63124 |
| 16′ – 17′ | VTLW-74135 |
| 18′ – 24′ | VTLW-74170 |
| 20′-24′ | VTLW-85190 |
Frameless Dump Body Options:
- Upgrade to 1/4″ A1011 Steel Floor
- Upgrade to 3/16″ or 1/4″ AR-450 Steel Floor
- Upgrade Body Shell to 7 GA or 1/4″ A1011
- Numerous Dump Body Tailgate Designs
- Numerous Dump Body Cab Shield Designs
- Dump Body Tarp Systems
- Dump Body Spreader Apron Options
- Coal Doors
- Custom Paint
- LED Lights and/or Strobe Packages
