Dump Body of the Week

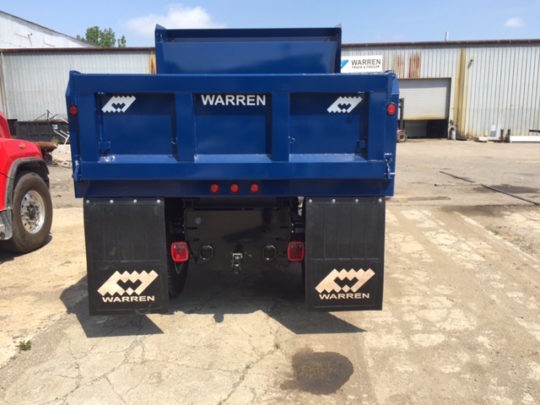

This week’s dump body of the week is a 10 ft utility dump body for the Birmingham Water Works Board. We are very fortunate to work with such a great organization and are happy to provide these great units for them. This model is perfect for municipalities in a variety of functions. These units feature double acting tailgates and special “water works paint”.
Want to learn more about all of the great Warren dump bodies? Visit our Products page at dumptrucks.com to download literature and see pictures of all of our models. We would love to help you spec your next unit!
Call us today to get a quote on your next dump body!
Specification
The specifications for this unit are below:
BODY |
|
|---|---|
| Yardage | 4/5 |
| Floor Material | 3/16 A1011 |
| Front / Material | 28″ 7 GA A1011 |
| Side / Material | 22″ 7 GA A1011 |
| Vertical Side Brace | Yes |
| Horizontal Brace | No |
| Hoist / Cylinder | U50-723 |
| Hydraulics | Yes |
INSTALL |
|
|---|---|
| Hydraulic Hoses/Fittings | Yes |
| Pump | 22 gal w/air shift CW |
| Console | Air/Air |
| Conspicuity Tape | No |
| Mudflaps and Brackets | Yes |
| Chrome Turnouts | No |
| Splash/Gravel Guards | No |
| Side Boards | Yes, 2 x 6 Hardwood |
| Covers | No |
| Wires in Conduit | No |
| Delivery Fuel/Charges | No |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 3 Vertical |
| Material | 7 GA A1011 |
| Height | 28 |
| Slope | None |
| Chains | 5/16″ |
| Double Acting | Yes |
| High Lift Gate | No |
| Side Swing – Ground Operated | No |
| Center Opening | No |
| Material Gate | None |
| Water Tight | None |
PAINT |
|
|---|---|
| Color Custom | Water Works Blue |
DB Options #1 |
|
|---|---|
| Cabshield | Full Width-1/2 (24″) |
| Asphalt Apron | None |
| Bolt On | No |
| Center Board Pockets | No |
| Lights | LED Standard |
| Oval S/T/T | None |
| Clear Backup | No |
PTO POWER TAKE OFF |
|---|
| Muncie CS for AUTOMATIC TRANSMISSION |
TOW PACKAGE |
|
|---|---|
| Pintle Hitch | 25 Ton Spring Loaded W/ Safety Eye 32″ from Ground |
| Glad Hands | Yes |
| D Rings | Yes |
| Tow Hooks | No |
| Back Up Alarm | Yes |
