Steel Trash Body of the Week

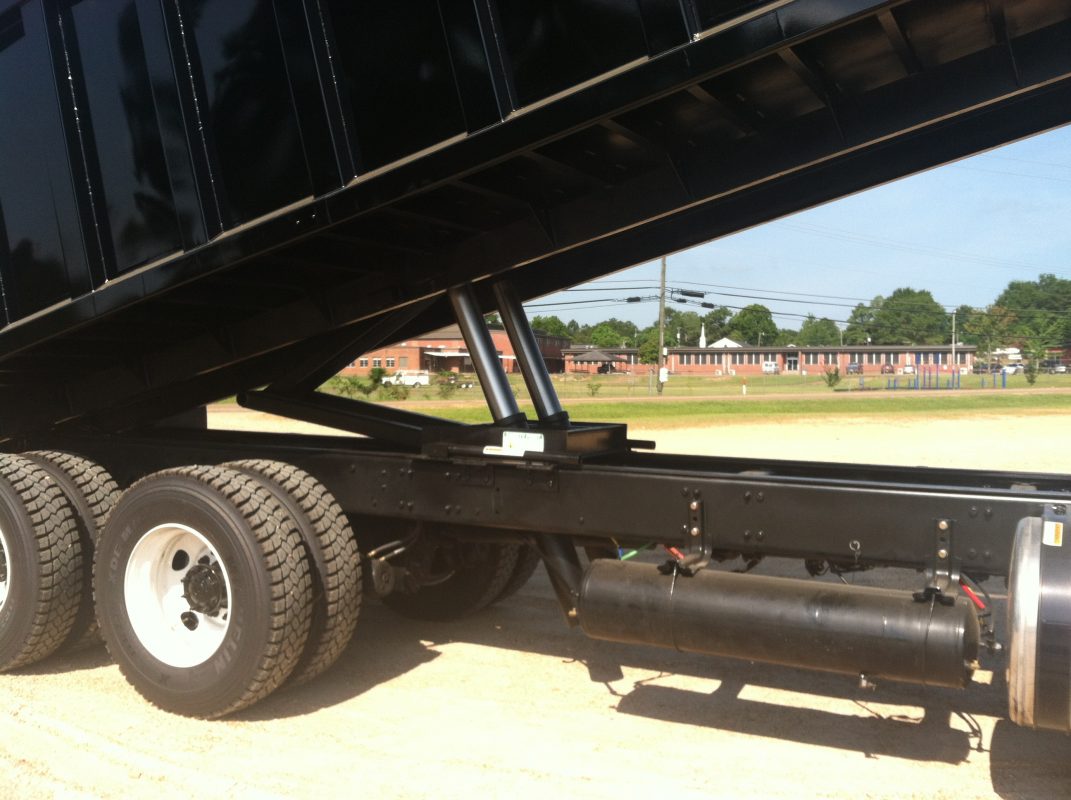

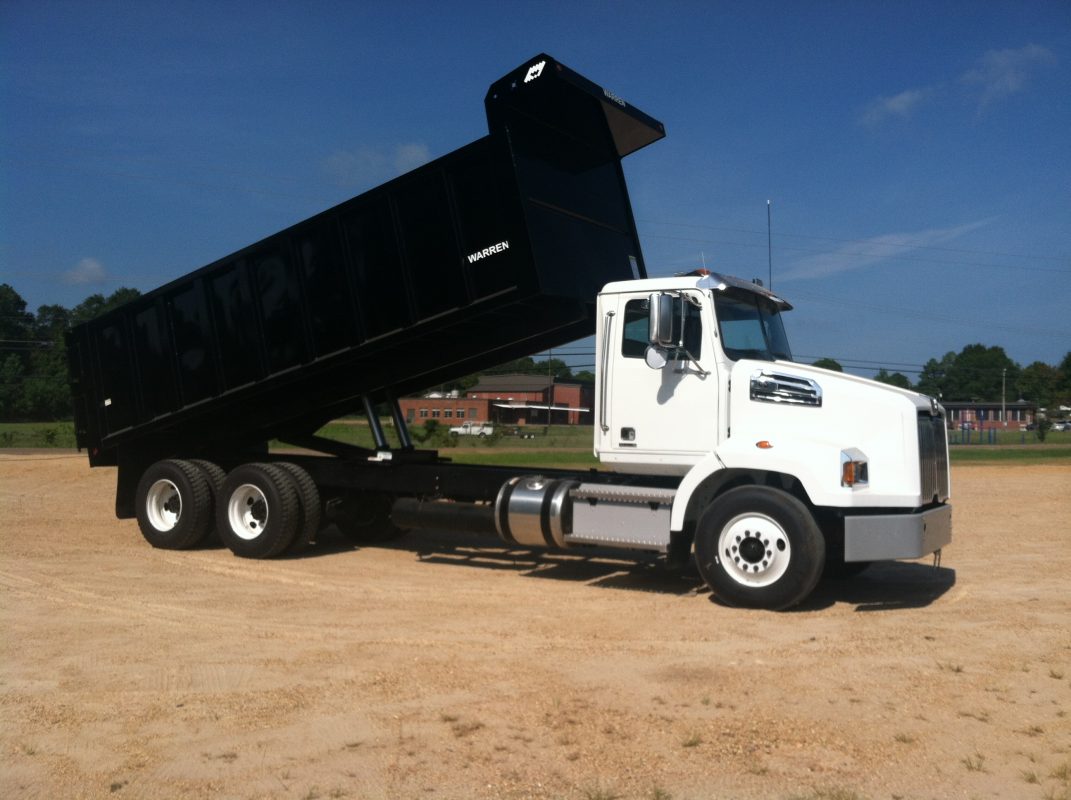

This week we are featuring the C-Series steel trash body as the body of the week. The body pictured was manufactured for the City of Baton Rouge, Louisiana. The Warren C-Series trash bodies are specially designed for general contractors and municipalities. Each steel trash body is built for durability and dependability. They are ready for use with scissor, underbody arm, or twin telescopic hydraulic hoists.
Remember to call Warren, Inc. for all your steel trash body questions!
The body has the below features:
- Warren C-Series Body
- 29 Yard Capacity
- 60” Front/Sides/Rear
- 3/16” Steel Floor
- 10 GA Steel Balance (the rest of the body is made of 10 GA)
- Warren CFT-5397 Hoist
- Center Opening Trash Tailgate
C Series Standard Specifications:
| Construction | ASTM A1011 A-45 High Tensile Steel |
| Understructure | 3” – 4.1#/ft. channel crossmembers standard 4” – 5.4#/ft. channel crossmembers for CF & CFT Hoists 5” – 9.0#/ft channel longitudinals standard 7” – 9.8#/ft. channel longitudinals for CF & CFT Hoists |
| Floor | 10 ga. steel – 7’3” inside width w/ radius inside corners at sides |
| Sides | 14” standard height Full depth rear corner posts & skirt Dirt shedding, sloped running boards |
| Tailgate | 20” height, 10 ga. vertical type – 6” higher than sides Boxed perimeter w/ boxed vertical braces 1 ¼ dia. lower pinOffset flame cut steel plate upper hinge Double acting w/ chains Manual lever latch control sides |
| Front Bulkhead | 42” height, 10 ga. steel Horizontal formed-in bracing |
| Dimensions | Width—inside 7’3” Lengths –12′, 14′, and 16′ are standard |
