Dump Body of the Week - WXL Series

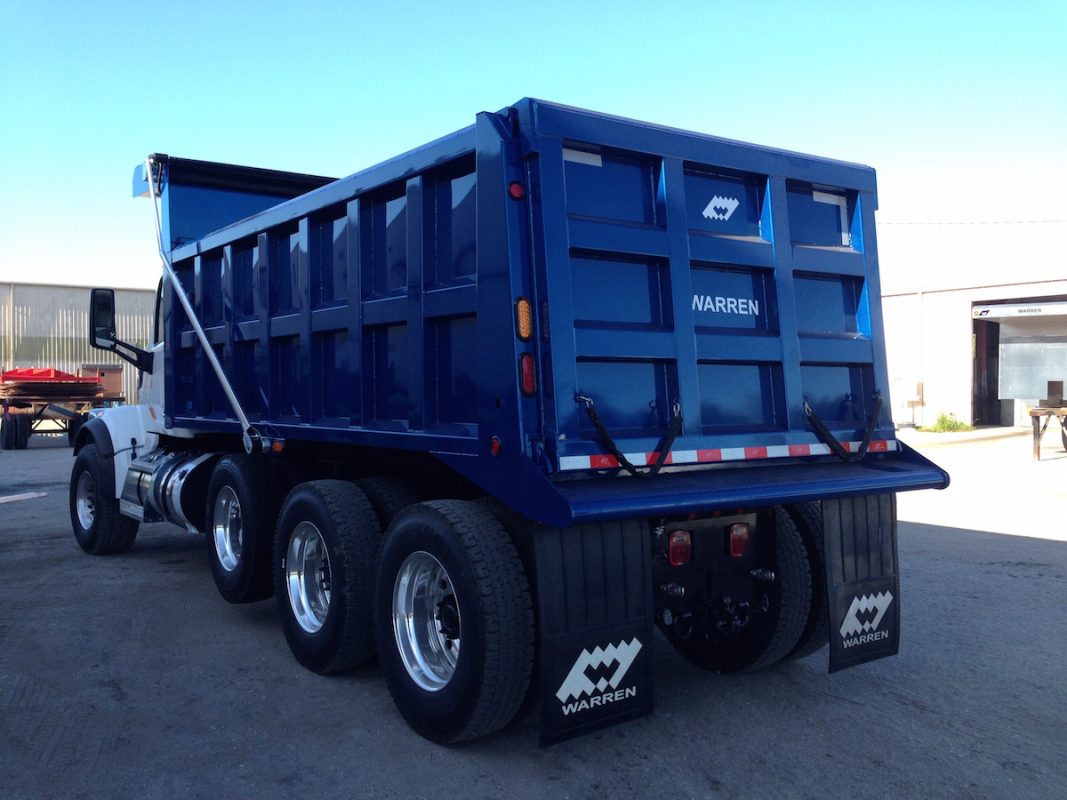

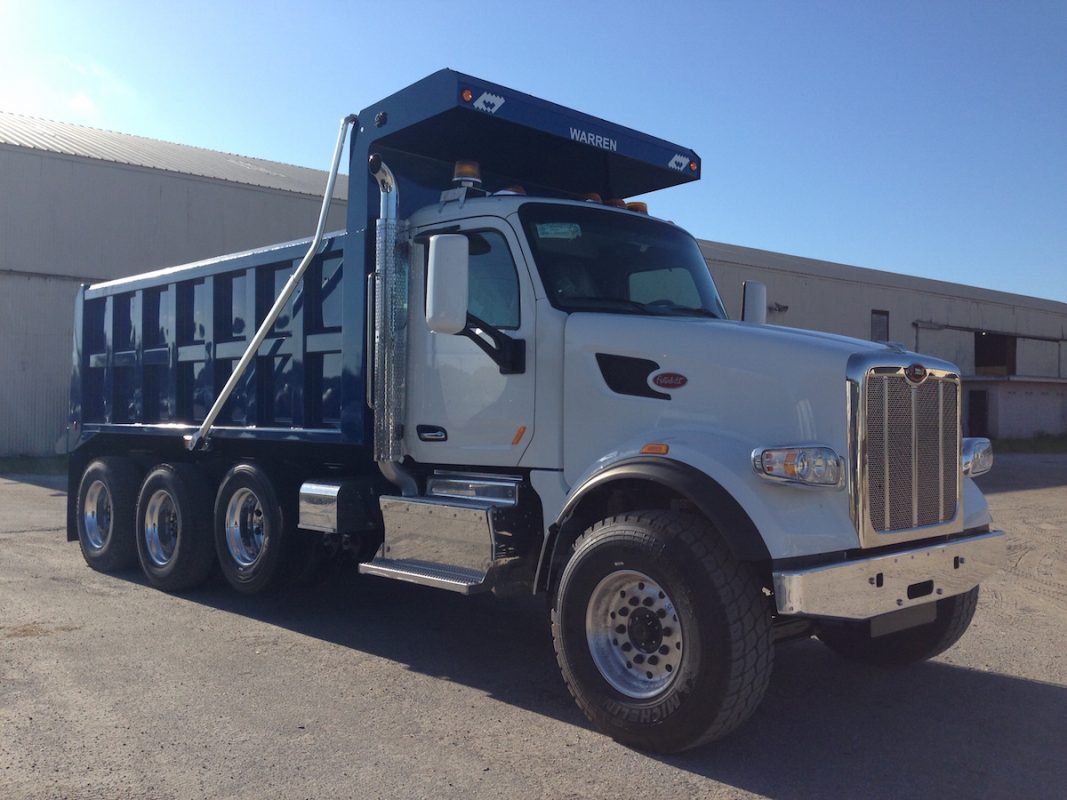

This week’s dump body of the week is a 17 ft dump body for Palm Peterbilt in Florida. This is one of ten units we are doing for this great customer. These crossmemberless dump bodies have several special features including strobe lights and a cap angle on the sides and tailgate.
These units have been setup for paving with a 22” overhang. They also have HARDOX AR-450 floors, making them versatile and easily used in a number of applications. Regardless of your application needs, we would be happy to quote your next dump body. We pride ourselves on our quality products and excellent customer service.
Call us today get your own Warren WXL Dump Body!
Specification
The specifications for this unit are below:
WXL |
|
|---|---|
| Yardage | 21/22 |
| Floor Material | 1/4 AR450 HARDOX |
| Front / Material | 60″ 10 GA A1011 |
| Side / Material | 56″ 10 GA A1011 |
| Vertical Side Brace | Yes |
| Horizontal Brace | Yes |
| Hoist / Cylinder | VTLW-74135 |
| Hydraulics | Yes |
INSTALL | |
|---|---|
| Hydraulic Hoses/Fittings | Yes |
| Pump | 22 gal w/air shift CW |
| Console | Air/Air |
| Conspicuity Tape | No |
| Mudflaps and Brackets | Yes |
| Chrome Turnouts | No |
| Splash/Gravel Guards | No |
| Side Boards | None |
| Covers | No |
| Wires in Conduit | No |
| Delivery Fuel/Charges | No |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 9 |
| Material | 7 GA A1011 |
| Height | 58″ |
| Slope | 6″ |
| Chains | 5/16″ |
| Double Acting | No |
| High Lift Gate | No |
| Side Swing – Ground Operated | No |
| Center Opening | No |
| Material Gate | None |
| Water Tight | None |
PAINT |
|
|---|---|
| Color | Blue Metallic 50356 on our color chart |
TARP SYSTEM |
|
|---|---|
| TARP system | installed |
| Brand | Shurco |
| Manual / Electric | Electric |
| Type | Arm |
| Aluminum / Steel | Aluminum |
| Bent Arm | Yes |
| Tarp Size | 90″x19′ |
| Tarp Type | Asphalt |
DB Options #1 |
|
|---|---|
| Cabshield | Full Width-3/4 (36″) |
| Asphalt Apron | 12″ Push Type |
| Bolt On | No |
| Lights | LED Standard |
| Oval S/T/T | (2) Per Post Red & Amber Strobe** |
| Clear Backup | No |
DB Options #2 |
|
|---|---|
| Cap Angle Sides & Tailgate
(2) Rear Amber Strobes (2) Mid Body Turn Signals ** 22″ Overhange for Paving ** |
PTO POWER TAKE OFF |
|---|
| PTO Muncie CS Series (Auto) W/ Overspeed Protection ALLISON 4500 RDS |
TOW PACKAGE |
|
|---|---|
| Pintle Plate | 3/4″ |
| Pintle Hitch | Customer Supplied Install @ 20″ center |
| D Rings | Yes |
| Electric Plug | 7 way |
