Dump Body of the Week: 16.5 ft WXL Series

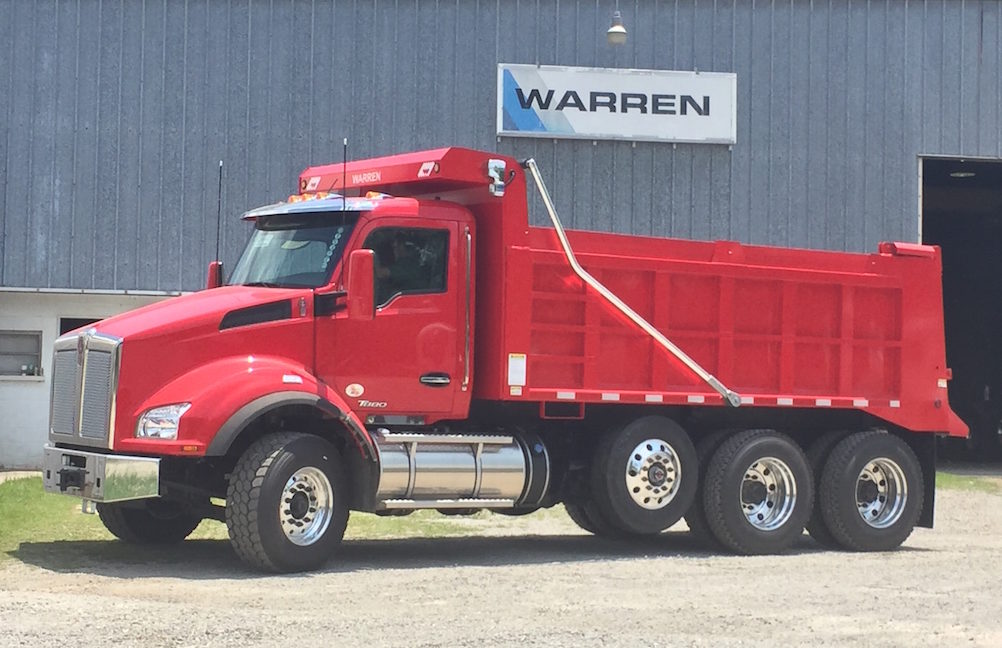

This week’s dump body of the week is a cab matched red crossmemberless dump body. This unit was manufactured in our Mississippi plant and sent to Columbia, SC, for installation. The WXL model dump can be built to your specifications. We built this unit out of all AR-450 steel to be used as a heavy duty dump body. The crossmemberless dump body model allows saved weight while maintaining the square shape that many customers love.
For more information on our WXL Series Model, please visit our products page. Be sure to look at all of our great dump body model options and remember that we can meet your specific specification on any of our great models.
Call us to get a quote today on your next crossmemberless dump body!
Specification
The specifications for this unit are below:
WAR-18 |
|
|---|---|
| DUMP BODY | CROSSMEMBERLESS – 16′-6″ |
| Yardage | 17/20 |
| Floor Material | 1/4 AR450 |
| Front / Material | 56″ 1/4 AR450 |
| Side / Material | 48″ 1/4 AR450 |
| Vertical Side Brace | Yes |
| Horizontal Brace | Yes |
| Hoist / Cylinder | VTLW-74135TAILGATE |
INSTALL |
|
|---|---|
| Pump | PERMCO 35 gal CCW |
| Console | Air/Air |
| Conspicuity Tape | Yes |
| Mudflaps and Brackets | Yes |
| Chrome Turnouts | No |
| Side Boards | Pine – 2×8 |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 2 Horizontal |
| Material | 1/4 AR450 |
| Height | 56″ |
| Slope | None |
| Chains | 5/16″ |
| Double Acting | Yes |
| High Lift Gate | Air Equipped – can add cylinders laterCabshield: Full Width-1/2 (24″) |
| Asphalt Apron | 8″ Push Type |
| Center Board Pockets | Yes |
| Lights | LED Standard |
| Oval S/T/T | (1) Per Post |
PAINT |
|
|---|---|
| Color | RED |
TARP SYSTEM |
|
|---|---|
| TARP system | installed |
| Brand | Donovan |
| Manual / Electric | Electric |
| Type | Arm |
| Aluminum / Steel | Aluminum |
| Bent Arm | Yes |
| Tarp Size | 90″x18′ |
| Tarp Type | Asphalt |
PTO POWER TAKE OFF |
|---|
| PTO Muncie TG8 Series (Manual Transmission) |
