Dump Body of the Week

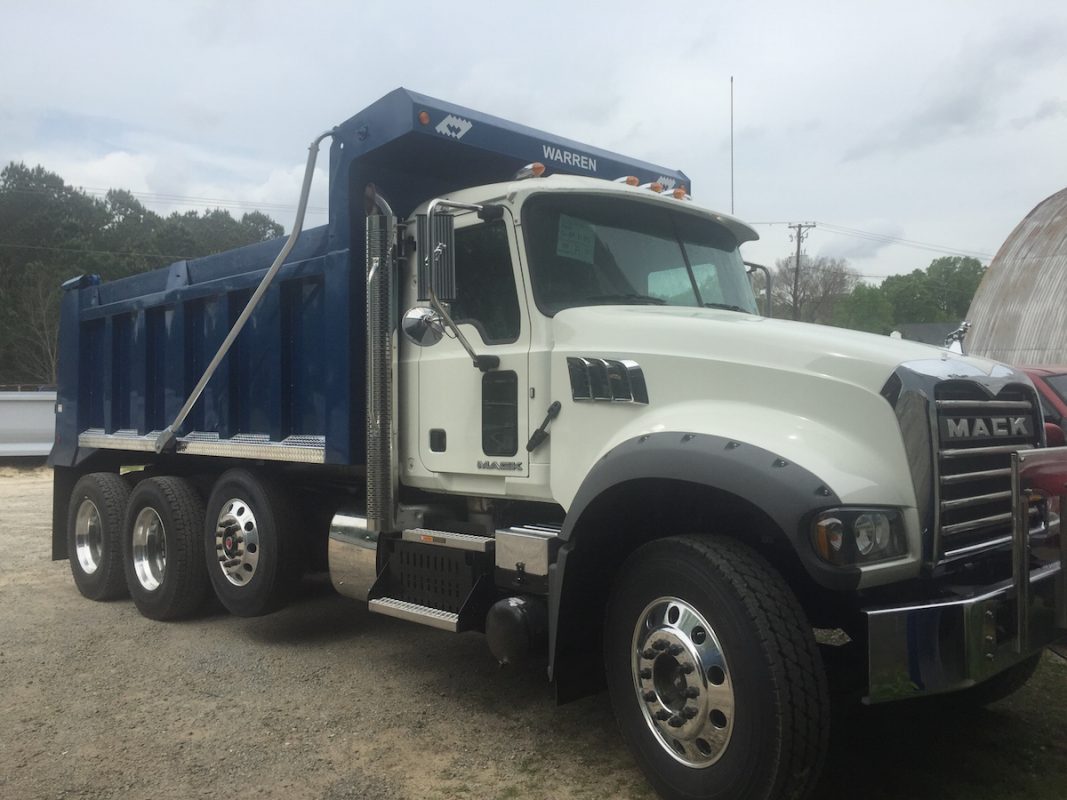

This week’s featured unit is a WXL-16.5, a crossmemberless dump body for Shealy Truck Center in Columbia, SC. This unit is light weight, but strong! This dump body is constructed out of AR450 steel, which gives it strength, but saves weight by having no crossmembers. This model is perfect for all of your heavy duty hauling, but also works great for your asphalt application.
For information on our other great dump body models, please visit our Products page.
Call us today get your own Warren WXL Crossmemberless Dump Body!
Specification
This great unit has the following specifications:
DUMP BODY |
|
|---|---|
| CROSSMEMBERLESS DUMP BODY | 16′-6″ |
| Yardage | 17/20 |
| Floor Material | 3/16 AR450 |
| Front / Material | 3/16 AR450 |
| Side / Material | 48″ 3/16 AR450 |
| Vertical Side Brace | Yes |
| Hoist / Cylinder | VTLW-74135 |
| Hydraulics | Yes |
INSTALL DUMP BODY VIBRATOR |
|
|---|---|
| Hydraulic Hoses/Fittings | Yes |
| Pump | 22 gal w/air shift CW (400-80262) |
| Side Boards | Pine – 2×8 |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 2 Horizontal |
| Material | 3/16 AR450 |
| Height | 56 |
| Slope | 6″ |
| Chains | 3/8″ |
| High Lift Gate | YES |
PAINT |
|
|---|---|
| Color | METALLIC BLUE |
TARP SYSTEM |
|
|---|---|
| Brand | Donovan |
| Manual / Electric | Electric |
| Aluminum / Steel | Aluminum |
| Bent Arm | Yes |
| Tarp Size | 90″x18′ |
| Tarp Type | Mesh |
| Lift Axle Type | Steerable |
| Rating | 13,200 lbs. |
| Controls | In Cab Elec./Air Control |
DB Options #1 |
|
|---|---|
| Cabshield | Variable Width-1/2 (24″) |
| Asphalt Apron | 8″ Push Type |
| Bolt On | No |
| Center Board Pockets | Yes |
| Lights | LED Standard |
PTO POWER TAKE OFF |
|---|
| PTO Muncie TG6 Series (AUTO) |
TOW PACKAGE |
|
|---|---|
| Pintle Plate | 3/4″ |
| Pintle Hitch | 25 Ton Swivel |
| Glad Hands | Yes |
| D Rings | Yes |
| Tow Hooks | Yes |
| Electric Plug | 7 Way |
