Dump Body of the Week

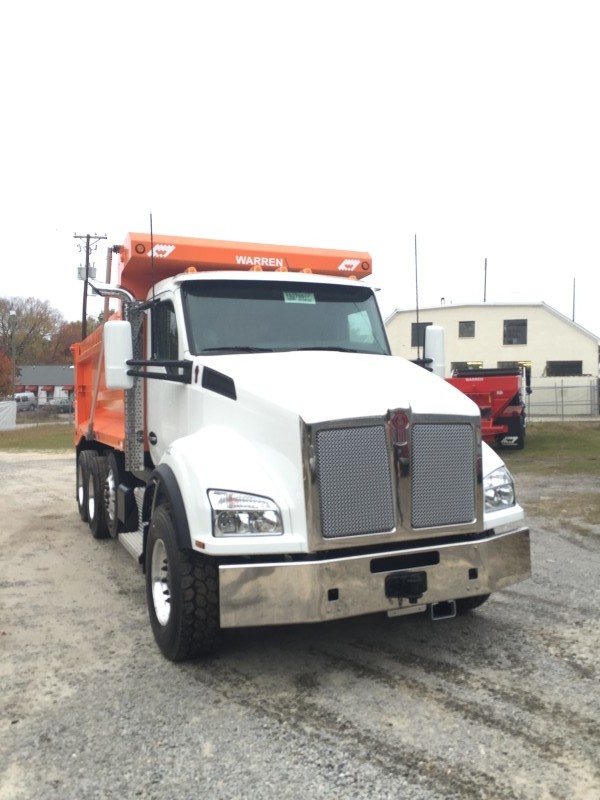

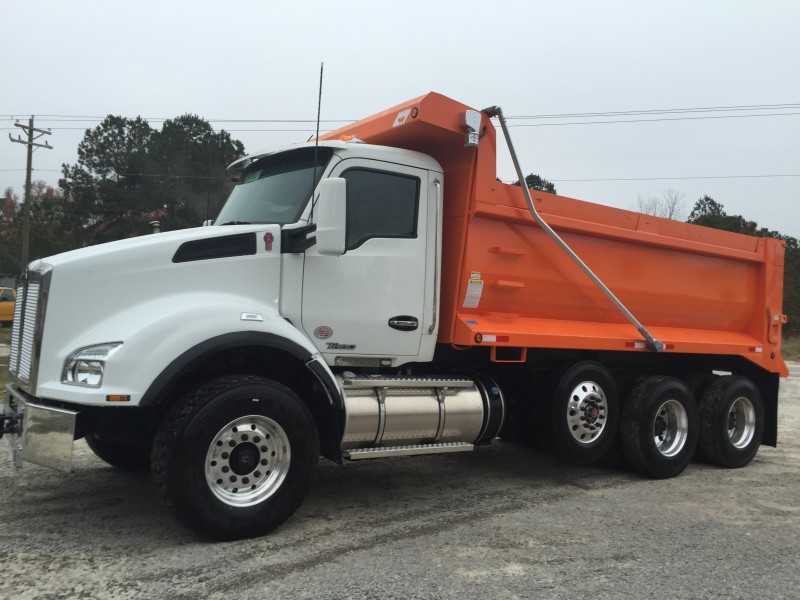

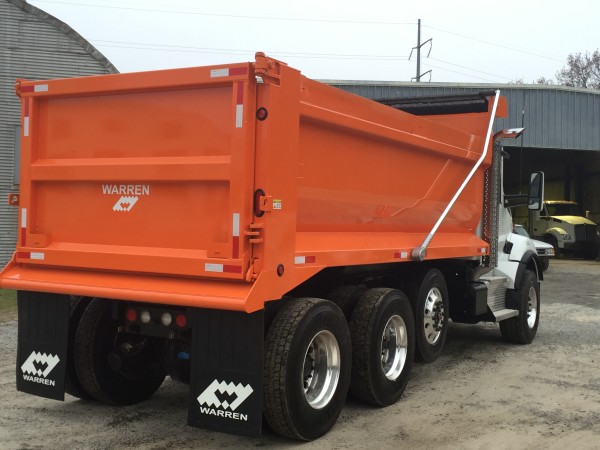

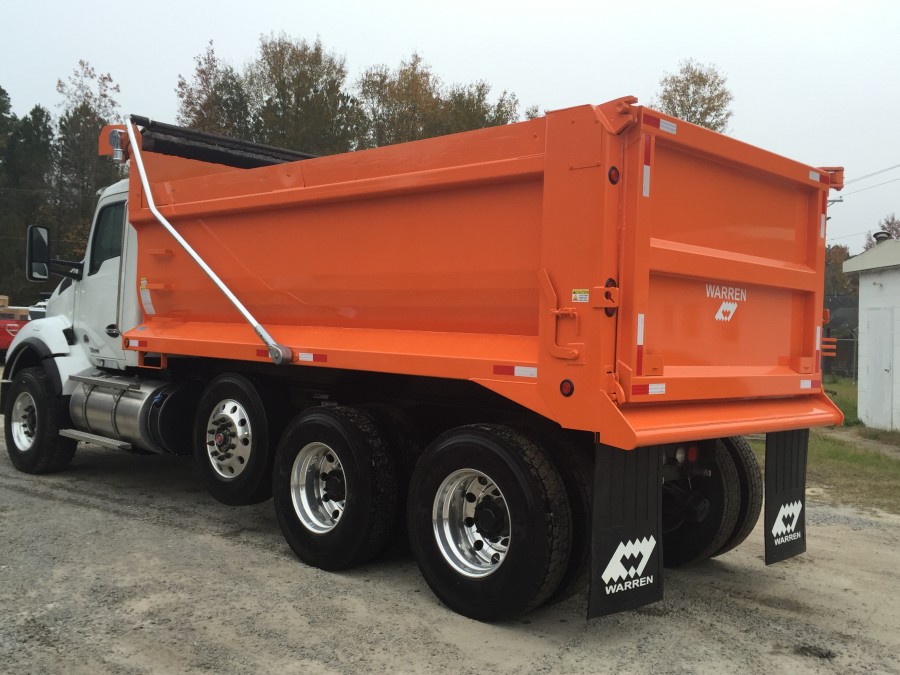

This week’s dump body of the week is a demolition body that is a 16.5 ft WAR dump body. This body was made here in Collins, MS, and installed in our Columbia, SC, location. This body was ordered by our great partners, Worldwide Equipment, for a fantastic customer who wanted another body to add to their Warren dump body fleet.
Our WAR demolition body is designed to handle tough jobs. It is constructed from hardox AR450 steel and can be customized to fit your specific needs.
Call us today to learn more about our WAR demolition dump bodies or any of our dump body models.
Specification
The specifications for this unit are below:
DEMOLITION BODY SPECS |
|
|---|---|
| Yardage | 17/20 |
| Floor Material | 1/4 AR450 |
| Front / Material | 56″ 1/4 AR450 |
| Side / Material | 48″ 1/4 AR450 |
| Hoist / Cylinder | VTLW-74135 |
INSTALL |
|
|---|---|
| Cabshield | Full Width-1/2 (24″) |
| Asphalt Apron | 8″ Push Type |
| Lights | LED Standard |
| Oval S/T/T | (1) Per Post |
| Hydraulic Hoses/Fittings | Yes |
| Pump | 35 gal w/air shift CW (400-80261) |
| Console | Clutch Shift Air |
| Chrome Turnouts | Yes (1) |
| Side Boards | Pine – 2×8 |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 2 Horizontal |
| Material | 1/4 AR450 |
| Height | 56 |
| Chains | 5/16″ |
| Double Acting | Yes |
| Side Swing – Ground Operated | Yes |
| See video here | Ground Op Side Swing Video |
PAINT |
|
|---|---|
| Color | KUBOTA ORANGE |
PTO POWER TAKE OFF |
|---|
| Muncie TG8 Series |
TOW PACKAGE |
|
|---|---|
| Pintle Plate | 1″ Pintle Plate |
| Pintle Hitch | 50T |
| Electric Plug | 7 Way |
