Dump Body of the Week

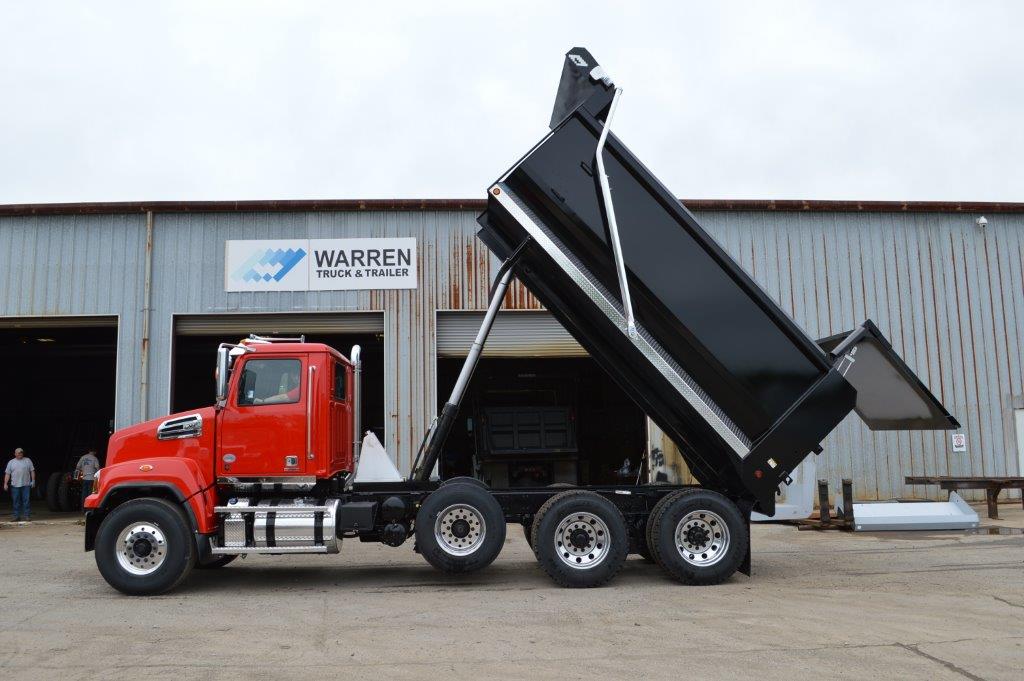

This week’s featured Dump Body of the Week is an Elliptical Demolition Dump Body manufactured in Collins, MS, and installed in Birmingham, AL. This unit is one of two units being done for Long Lewis Western Star.
We have dedicated sales representatives standing by to answer your questions and send you a quote.
Call us today get your own Warren Demolition Dump Body!
Specification
This Elliptical Demolition Dump Body has the following specifications:
DUMP BODY |
|
|---|---|
| Yardage | 21/21 |
| Floor Material | 1/4 AR450 |
| Front / Material | 62″ 1/4 AR450 |
| Side / Material | 62″ 1/4 AR450 |
| Vertical Side Brace | No |
| Horizontal Brace | No |
| Hoist / Cylinder | VTLW-74135 |
| Hydraulics | Yes |
INSTALL |
|
|---|---|
| Hydraulic Hoses/Fittings | Yes |
| Pump | 35 gal CW (400-80260) |
| Console | Air/Air |
| Conspicuity Tape | No |
| Mudflaps and Brackets | Yes |
| Side Boards | None |
| Covers | Yes |
| Wires in Conduit | No |
TAILGATE |
|
|---|---|
| Air Operated | Yes |
| Panel | 3 Horizontal |
| Material | 1/4 AR450 |
| Height | 62 |
| Slope | None |
| Chains | 5/16″ |
| Double Acting | No |
| High Lift Gate | Air Operated |
PAINT |
|
|---|---|
| Color | Warren Black |
TARP SYSTEM |
|
|---|---|
| TARP system | installed |
| Brand | Donovan |
DB Options #1 |
|
|---|---|
| Cabshield | Full Width, 1/2 (24″) |
| Asphalt Apron | 8″ Push Type |
| Bolt On | No |
| Center Board Pockets | No |
| Lights | LED Standard |
DB OPTIONS # 2 |
|
|---|---|
| Steps DS | Alum Gravel Guards |
PTO POWER TAKE OFF |
|---|
| PTO Muncie CS Series (Auto) |
TOW PACKAGE |
|
|---|---|
| Pintle Plate | 3/4″ |
| Pintle Hitch | 25 Ton Swivel |
| Glad Hands | Yes |
| D Rings | Yes |
| Tow Hooks | Yes |
| Electric Plug | 7 Way |
